Detail Loadcell Digital Untuk Jembatan Timbang

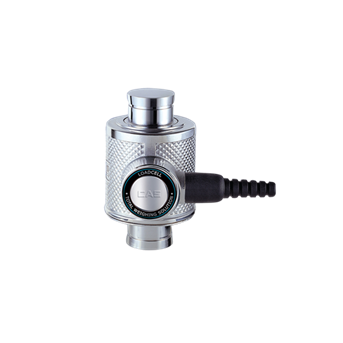

CAS WBK-D

CAS WBK-D digital load cell is designed for use in truck scales and process weighing applications. It is a stainless steel compression load cell with a digital output signal. Using the digital output, the user can communicate with each load cell independently and have the additional advantages of a digital calibration.



FEATURES : CAS WBK-D DIGITAL LOAD CELL

Simple installation and e­ffective maintenance High accuracy RS-485 digital output Stainless steel construction IP68 and hermetic sealing Diagnosis function Built-in lighting protection device Maximum transmission distance : 1,000m

SPECIFICATIONS : CAS WBK-D DIGITAL LOAD CELL

Capacity (R.L.) tf 10, 20, 25, 30 Maximum number of verification intervals (n) – 5,000, C4 (OIML) Rated Output counts 300,000 Zero Balance counts ± 300 Non-Linearity

Hysteresis

Combined Error

Repeatability

Creep for 30min % R.O.

% R.O.

% R.O.

% R.O.

% R.O. < 0.015

< 0.015

< 0.015

< 0.01

< 0.017 Temperature

Effect on Zero Value

Output Value % R.O./10˚C

% R.O./10˚C 0.014

0.011 Compensated Temperature Range ˚C -10 ~ +40 Operating Temperature Range ˚C -40 ~ +70 Excitation

Voltage Minimum

Recommended

Maximum V

V

V 6

9

24 Safety Overload % R.C. 150 Material – Stainless steel Communication – RS-485 (2wire) Communication Rate kbit/sec 19.2 Maximum Transmission Cable Length m 1,000 Warm-up Time from Cold Start minutes 15 Asynchrone Interface Baud rate Baud 9,600 ~ 115,200 Number of Bus Addresses – Max. 16





APPLICATIONS : CAS WBK-D DIGITAL LOAD CELL

Truck scale Hopper and silo scale
