Detail Indikator Water Proof Thames Side Smart IP65

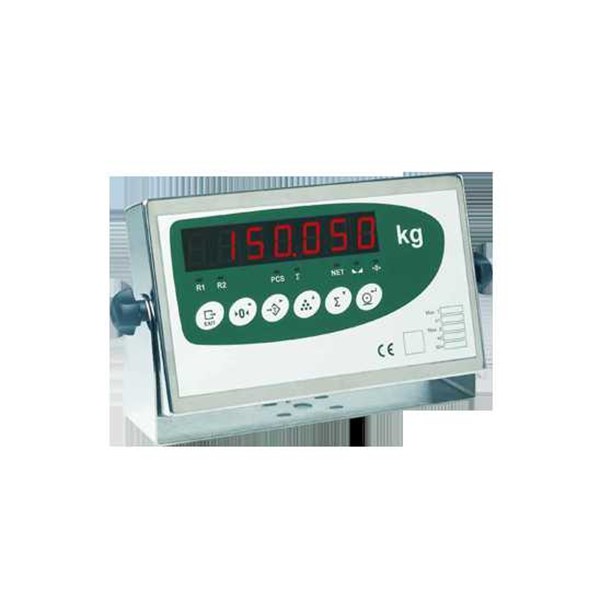

Thames Side SMART IP65
Vessel weight indication problems solved simply and cost effectively. The Smart range of digital indicators provides a simple solution where a local display of weight is required. Three models are available at different price points to cover most requirements. ATEX versions for use in zones 2, 21 and 22 are also available.
FEATURES : THAMES SIDE SMART IP65 INDICATORS
User friendly configuration and calibration menu 7 digit, high brightness, LED display Digital communications Lineariser function Multi-range for dual range and dual division High resolution; 100,000 external divisions OIML R76 and EN 45501 approved Excitation for up to 4×350Ω or 8×700Ω load cells IP65 stainless steel enclosure with mounting kit Configurable as a remote display
SPECIFICATIONS : THAMES SIDE SMART IP65 INDICATORS
Resolution 24 bit A/D Internal Divisions 16 million External Divisions 100,000 Excitation 6 V DC Ac Power Supply 230 +/- 10% V AC 50/60 Hz, 6W Dc Power Supply 12 V DC (9-18V DC) 600 mA Approval OIML R76, EN 45501, single or multi-range Analogue Outputs 0-5V, 0-10V, 0-20mA, 4-20mA; Opto-isolated Digital Inputs 4 Digital Outputs 4 Network Comms RS485 and RS232T Serial Comms RS232 Enclosure Stainless Steel Display Digits 7 x 20mm Readings Per Second 50 Clock Date – Time Cable gland & terminal connections Hermetically sealed Environmental Protection IP65
