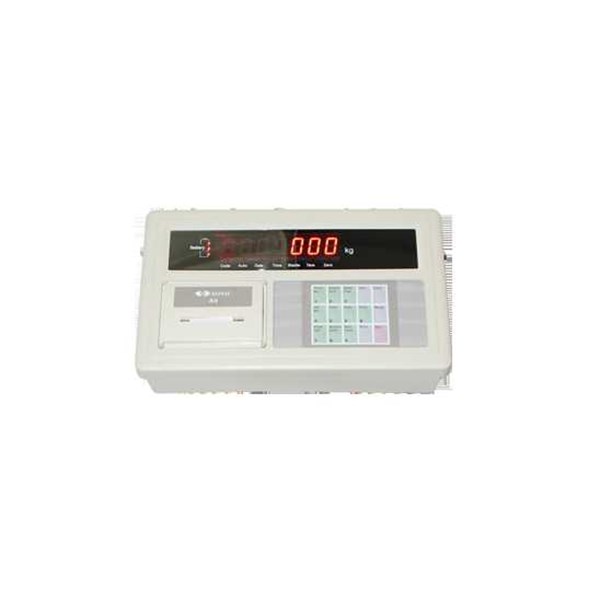

Detail Indikator Printer Sonic A9P
Sonic A9P
SPECIFICATIONS : SonIC A9P INDICATORS
Accuracy Class III, n=3000 Conversion Δ－Σ type of A/D Input signal range -16 mV～ 18 mV Conversion speed 10 times/second A/D resolution code 1 million code Calibration All operation made by keys Excitation power DC, 5V, able to connect with 8pcs of 350Ω load cells or 16pcs of 700Ωload cells Load cell connection method 6 wire method, long wire auto compensation Display 7 LED digit, 7 status indicating lights, 3 battery indicating lights. Display circulation 100ms Division 1/2/5/10/20/50/100 optional Clock Can display year/month/day, hour/minute/second, auto reap year and moth Number keys 0~9 Function keys 15 (10 of them are share with number keys for combine application) Material for keys Light touch type of pellicle Scoreboard connection interface Serial output Transmission method Current loop/ RS232 signal Transmission data type 11 bytes Baud rate 600 Transmission distance ≤30m Serial communication interface Transmission method RS232C/RS422(optional)/ RS485(optional) Baud rate Baud rate option 600/1200/2400/4800/9600 Transmission data format 10 bytes: 1 byte is start, 8 data bytes (ASC II code), 1 byte is stop. Transmission distance RS-232 : ≤30m
RS-422/RS-485 : ≤1200m Standard parallel output interface To connect with TpuP 16 micro printer; wide line printer like M800 KX-P1121, KX-P1131, LQ300K+, LQ1600K; POS58, T58D thermal micro printer. Built-in printer (for A9+P) Printing system: dot-matrix (96 dots each line), adopts M-150 II printing head or TpuP-16B printing head. Printing paper: standard blank paper, width : 44.5 ±0.5mm, thickness: 0.07mm, paper roll external diameter less then 50mm Life span for Printing head: 0.5×106 lines Printing ribbon: blue ribbon are installed in the removable ribbon box, its life span is 1×106 lines Data saving 1000 units of truck No. and tare, 201 unit of cargo, 1001 unit of weighing record AC power AC 220V (-15%~+10%) ；50Hz (-2%~+2%) DC power Adopts 6V/10AH battery (external) Battery application about 24h (fully charge without using the built-in printer) Battery charging about 30h AC fuse 500mA Application temperature 0℃ ~ 40℃ Storage temperature -25℃ ~ 55℃ Relative humidity ≤85% RH
