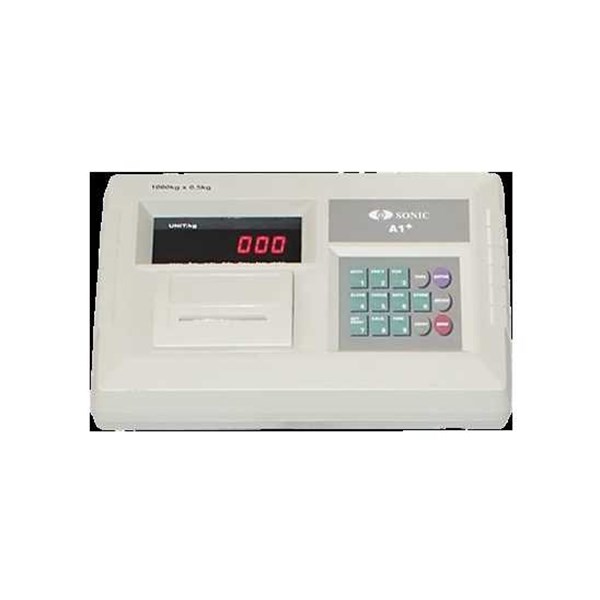

Detail Indikator Printer Sonic A1P

Sonic A1P

SPECIFICATIONS : SonIC A1P INDICATORS

Sample rated 5~25 times / sec Load cell sensitivity 1~ 2mv/v Division 1/2/5/10/20/50/100 optional Display 7-bits LED digital display 0.56” in character height and 7 status indicating Clock can display day/month/year and second/minute/hour Scoreboard display interface Using serial output method :

current loop signal, transmission distance ≤50m

RS323 signal, transmission distance ≤30m Communication port RS-232C, Baud rate: 600/1200/2400/4800/9600 optional Printing Port Standard parallel output port, can connect with Tpup16 micro-printer, TM800,LX-300, KXP-1121and LQ-1600k wide-line printer. Power Supply AC 187~242V ;   49~50Hz The built-in repair-proof storage cell; 12V,7AH Operating Temperature and Relative Humidity 0 ~ 40℃, ≤90% RH Storage /transportation Temperature -20 ~ 50℃ Fuse 500mA
