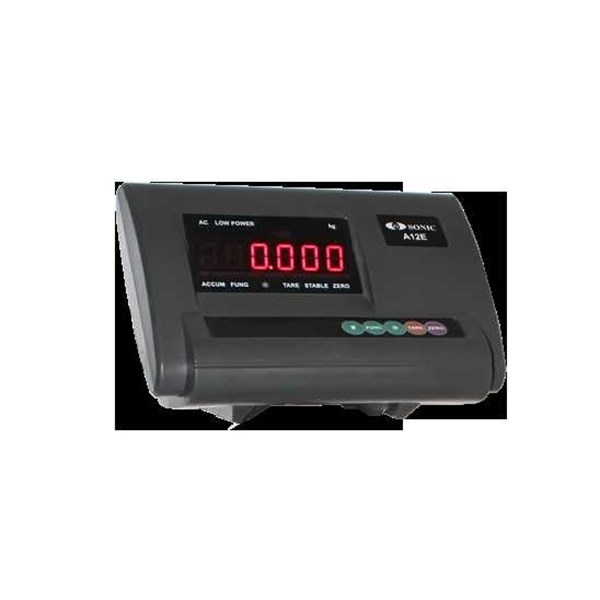

Detail Indikator Platfrom Scale Sonic XK3190-A12E

Sonic A12E

FEATURES : SonIC A12E INDICATORS

Use inner code to replace weight observing and analysis tolerance Software to strength anti-vibration ability Zero-tracking, zero range setup (auto/manual) Setup digital filter intensity, range and stable time Counting function with unit data save protection in case of power off Peak holding function Optional function : Kg/lb switch function Animal scale function (A1-5 only) Two fixed-value outputs function with TTL output

SPECIFICATIONS : SonIC A12E INDICATORS

Input signal range -10mV ~ 15mV Grand 1/30000/6000/7500 Converting speed 40 times/second A/D code 360000 Non linearity 0.03% Drift 0.03% Interval 1/2/5/10/20/50 Display 0 – 999999 Optional interface RS-232C serial communication Transmission distance RS-232C <30 meters Power supply AC 180V-240V 49-51Hz Humidity 85 RH Fuse 500mA
