Detail Indikator Platform Scale - Bench Scale Sonic T10

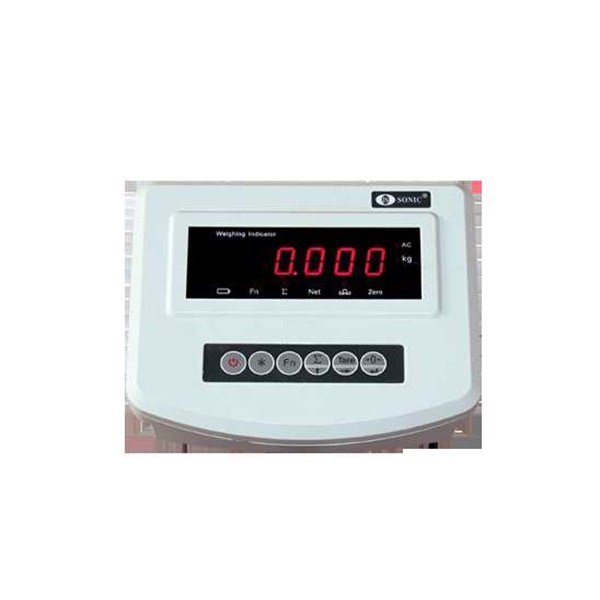

Sonic T10

Sonic T10 weighing indicator adopts high anti-jamming MPCU and high precision ∑ – ∆  A/D conversion technology, wildly applied in platform scale, platform balance and other weighing applications.



TECHNICAL PARAMETERS : SonIC T10 INDICATORS

A/D Conversion mode : adopt ∆-∑ technology, 10 times per second Input sensitivity : ≥1.5uV/e, Pi=0.50 Load cell Excitation : DC +5V, can connect with 1-4 pcs 350Ω strain gauge load cell. Signal input range : -16mV~18mV Load cell connect mode: standard connection adopts 4 lines ( can refit 6 wire long lines automatically compensation, compensate distance ≤30m )  Division value : 1/2/5/10/20/50 optional Power supply : special adapter, AC 100~240V, 50Hz~60Hz; inbuilt 6V4AH maintenance-free lead acid battery Use temperature : 0°C-40°C, relative humidity ≤85%RHv Storage temperature : -20°C~60°C, relative humidity ≤95%RH Dimension : 230 x 164 x 165mm
