Detail Indikator Platform Scale - Bench Scale Sonic N1-7

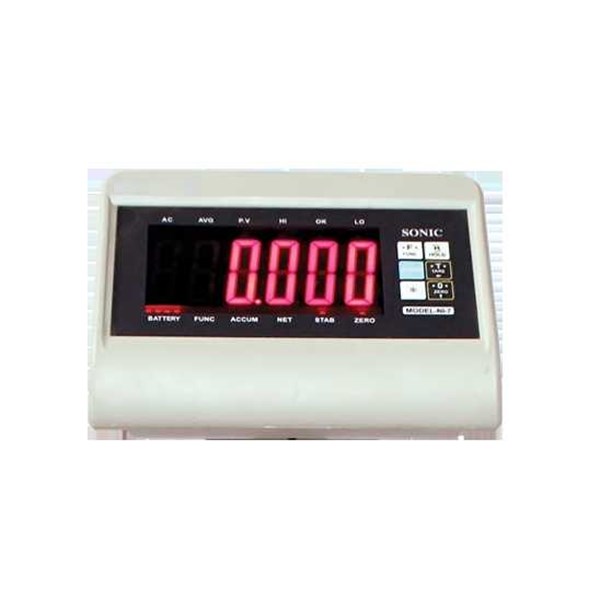

Sonic NI-7

SPECIFICATIONS : SonIC NI-7 INDICATORS

Analog Input signal range -19mV ~ 19mV Conversion speed More than 10 times/s Nonlinearity 0.0015% Gain drift 0.03% Bridge voltage DC 5V Sensor connection 1-4 350Ω sensors Indication Indication range -99999 ~ 999999 (decimal point is not considered) Scale interval 1/2/5/10/20/50 optional Serial communication interface Signal RS232 signal Transmission distance ≤20m Operating environment Power supply AC220V; 50, 60Hz (-2% ~ +2%) Operating temperature -10°C ~ 40°C Storage and transport temperature -25 °C ~ 55 °C Relative humidity ≤85% RH Fuse 500mA Weight Approx. 2 kg
