Detail Indikator Platform Scale/Bench Scale Cas NT-200A

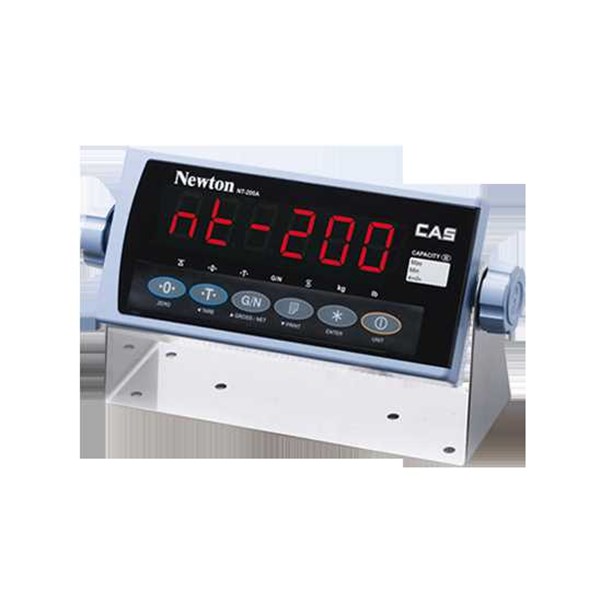

CAS NT-200A
FEATURES : CAS NT-200A INDICATORS
High resolution & small-size indicator 6 wire A/D conversion part application RFI/EMI screened Weight Back-up (Saving of weight at sudden power failure) RS-232C interface Display LED
APPLICATIONS
OPTIONS
Platform Scale RS-442/485 interface
SPECIFICATIONS : CAS NT-200A INDICATORS
Load cell input voltage DC 5V Load cell connection (350 ohm) 6 L/C Zero calibration 0.05 ~ 5mV Input sensitivity 1.2 μV/D (OIML/NTEP/KS), 0.5 μV/D (Non Approval) A/D internal resolution 1/200,000 A/D external resolution 1/5,000 (OIML/NTEP/KS)
1/20,000 (Non Approval)
A/D Conversion speed 60times/sec Display Display type LED Digits 6 digits Text size 25 mm Input function – Out put function – Power AC 23V0, 9VDC Operating temperature -10˚C ~ +40˚C Dimension (WxDxH)mm 200 x 53 x 96 (A) Product weight 0.5kg IP Class IP65 (AS)
