Detail Indikator Platform Scale/Bench Scale Cas DBI

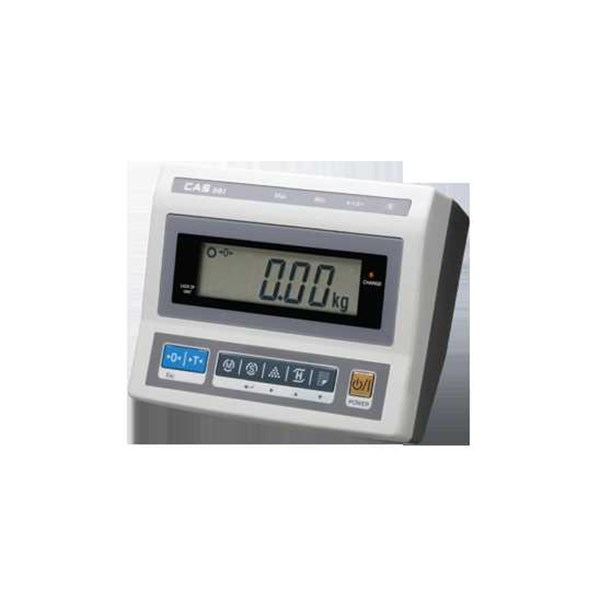

CAS DBI

CAS DBI Connectable with various sizes of weighing platform scales for versatile applications such as open markets and retail stores. DBI offers various convenient functions including counting, weight comparison and percentage functions at economic price.



FEATURES : CAS DBI INDICATORS

3,000 division under OIML Large LCD display with backlight (20mm) Wide application functions for bench & platform scales Counting & percentage mode Accumulation mode (Σ ) Weight comparison (HI/LOW/OK) Ticket print-out (DEP-50) RS-232C interface Rechargeable battery (Approx.100 hours) Auto power off function

OPTIONS : CAS DBI INDICATORS

Stand bracket Wall bracket DEP-50 (Ticket printer)

SPECIFICATIONS : CAS DBI INDICATORS

Input Sensitivity 1.25 V Load Cell Connection 1 Load cell of 350Ω Load Cell Input Voltage DC 5V Zero Calibration < 0.0 mV A/D Type Sigma delta A/D internal Resolution 1/60,000 A/D external Resolution 1/3,000 A/D conversion Speed 20 times/sec Display 25mm 6 digits LCD Power 12 VDC

6V DC Pb battery Dimensions (mm) 278 x 145 x 187 Product Weight 1.5 kg
