Detail Indikator Platform Scale/Bench Scale A1x

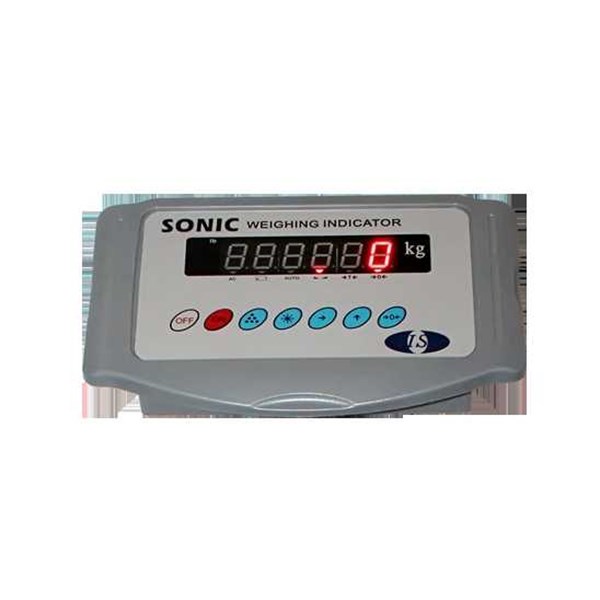

Sonic A1X

TECHNICAL PARAMETERS : SonIC A1X INDICATORS

Simple operation Keyboard calibration and configuration Weighing up to 1:15,000 divisions Excitation voltage : DC 5V; Up to 4，350 Ω load cells can be used Manual or automatic memory accumulation facility High Resolution (×10) Display Selectable digital filtering Selectable automatic power off 6-bit Display : 0.8 inches LED Selectable display resolution : 1 / 2 / 5 / 0.1 / 0.2 / 0.5 / 0.01 / 0.02 / 0.05 / 0.001 / 0.002 / 0.005 / 10 / 20 / 50 / 100 / 200 / 500 / 0.10 / 0.20 / 0.50 / 0.010 / 0.020 / 0.050 RS–232C The interface , optional RS–485 interface 1200 2400 4800 9600 Baud rate continuous ASCII data output External Power supply : 230V(115V) AC. Internal rechargeable 6V DC Battery Operating temperature : 0℃ to 40℃.Storage temperature: -25℃ to 55℃ Relative humidity : ≤ 85% non–condensing Dimensions : 256mm wide × 165mm high ×130mm deep
