Detail Digital Indikator Untuk Jembatan Timbang

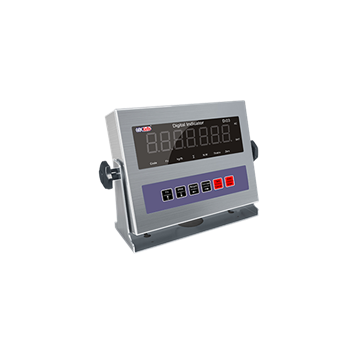

MKCells MK-Di03
MKCells MK-Di03 digital weighing indicator can be used with 1 – 4 SLB-D or digital load cell. It has function of accumulation and unit switch over and applies to small platform scale, weighbridge and farmers scale.
Stainless steel enclosure
Clock function: year, month, date, hour, minute, second, auto leap year, leap month
Calibration switch code
External parallel printer: allow single weigh, fixed printing format, not support printing record checking
Support accumulation, clear, unit switching, by function key checking , printing accumulation data, times…etc
Support regular shutdown, random code decryption function
Input password before calibration and adjusting
Auto networking and auto auto-creating weighing scale system
Automatic and manual corner-difference adjustment
Power on, auto zero-setting range, manual zero-setting range can be set separately, zero tracing range can be set
Random charging by indicator, low power indication and voltage status monitoring
RS232 communication interface, multi communication protocol
Encryption function is available while load cell and indicator is communicating
Digital load cell SN checking, overload record checking function
Scoreboard interface, series port communication port and standard parallel Printer interface,fixed pound printing format
Equipped with EMC protection
Main Technical Parameters Digital load cell interface RS485, max transmission distance £ 75m Transmission speed rate 19200 bps Digital load cell power supply DC 12V/750mA Digital load cell connection quantity 1 ~ 4 pcs Digital load cell communication protocol MK-LUD-P protocol, MK-SLB-D protocol Display 7 LED digital tube with 1.2 inch red light, 7 state instruction Scoreboard interface Current loop serial output, RS232, 600 bps, transmission distance £ 100m Serial communication interface RS232, 600 ~ 19200 bps optional Printer interface Standard parallel print interface, recommend EPSON LQ/300K + II Panasonic KX-P1121/1131, POS 58 printer Indicator power supply AC : Switch power supply 100V ~ 200V/AC, 50Hz
Optional DC : External connection batteries, 12V/DC Operating temperature 0°C ~ 40°C Humidity : £ 85% (RH) Storage temperature -10°C ~ 60°C Storage Humidity : £ 95% (RH) Dimension 293 x 210 x 70mm
