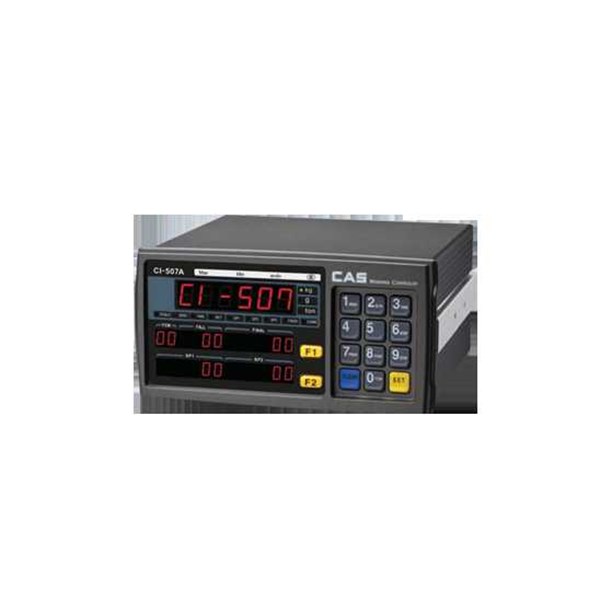

Detail Batching Control System Indikator CAS CI-507A
CAS CI-507A
FEATURES : CAS CI-502A INDICATORS
High precision, high resolution indicator | Easy operation with ten key High visibility, large FND display (20mm) High speed of A/D conversion (200 times/sec) Easy operation & Various functions Simple Calibration (full digital callibration) Various specification of weight conversion speed (Digital Filter) Built-in self test & self recovery functions Saving of data at sudden power failure Various printer connection (Serial, Centronics parallel) 4 wire, 6 wire load cell support (8 load cell connection) Independent Zero & span calibration Self hardware test | Basic interface : RS-232C, Current loop External input: 4 EA External output: 6 EA
OPTIONS : CAS CI-502A INDICATORS
RS-442/RS-485 interface Analog output
APPLICATIONS : CAS CI-502A INDICATORS
Measuring instrument tester Platform scale Truck scale Packer scale Hopper scale Limit scale Checker scale
SPECIFICATIONS : CAS CI-502A INDICATORS
Load cell excitation voltage DC 10V Load cell connection (350ohm) 8ea (4 or 6-wire) Zero adjustment range -0.6mV ~ +42.0mV Input sensitivity 0.45uV/D A/D conversion method Sigma-delta A/D internal resolution 1/520,000 A/D display resolution 1/10,000 A/D conversion speed 200 times/sec Display Unit Display Kg, g, ton Display Weight Display 6digits LED (Height: 25mm) Display Auxiliary Display 5ea Power AC 100~250V, 50/60Hz Operating Temp -10˚C~ 40˚C External input 4ea External output 6ea Product size (W x D x H/mm) 195 x 189 x 98 Product weight (kg) Approx. 1.8kg
